Single column water softener BWT EUROSOFT
Short information
Nominal connection diameter: 25 mm Nominal flow rate: 0.8 - 3.3 m³/h Maximum flow rate: 1.1 - 3.9 m³/h Operating pressure (min./max.): 3.0/7.0 bar
SKU:
77301sbor
| Наименование | Краткая информация | Артикул | Price | Qty | Add to Cart |
|---|---|---|---|---|---|
| Single column water softener BWT EUROSOFT AQUA 0844 | Nominal connection diameter: 25 mm Nominal capacity: 0.8 m³/h Dimensions (W x D x H): 694x490x1333 mm | 77301 |
₴32,336.00
|
Possible discount
|
|
| Single column water softener BWT EUROSOFT AQUA 1044 | Nominal connection diameter: 25 mm Nominal capacity: 1.3 m³/h Dimensions (W x D x H): 744x490x1333 mm | 77302 |
₴35,015.00
|
Possible discount
|
|
| Single column water softener BWT EUROSOFT AQUA 1054 | Nominal connection diameter: 25 mm Nominal capacity: 1.3 m³/h Dimensions (W x D x H): 744x490x1587 mm | 77303 |
₴37,083.00
|
Possible discount
|
|
| Single column water softener BWT EUROSOFT AQUA 1248 | Nominal connection diameter: 25 mm Nominal capacity: 1.8 m³/h Dimensions (W x D x H): 854x550x1538 mm | 77304 |
₴39,574.00
|
Possible discount
|
|
| Single column water softener BWT EUROSOFT AQUA 1354 | Nominal connection diameter: 25 mm Nominal capacity: 2.2 m³/h Dimensions (W x D x H): 880x550x1587 mm | 77305 |
₴45,731.00
|
Possible discount
|
|
| Single column water softener BWT EUROSOFT GIT WS 1'' 1465 | Nominal connection diameter: 25 mm Nominal capacity: 2.5 m³/h Dimensions (W x D x H): 1066x710x1860 mm | 77306 |
₴54,802.00
|
Possible discount
|
|
| Single column water softener BWT EUROSOFT GIT WS 1'' 1665 | Nominal connection diameter: 25 mm Nominal capacity: 3.3 m³/h Dimensions (W x D x H): 1117x710x1860 mm | 77307 |
₴62,886.00
|
Possible discount
|
Details
Details

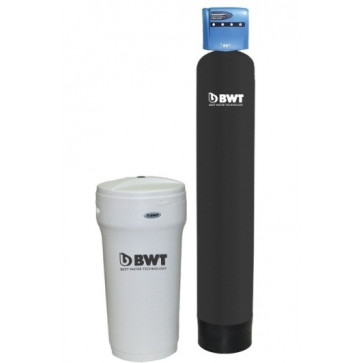

Single column water softener BWT EUROSOFT
Description
The BWT EUROSOFT single-column softener is used in domestic and drinking water supply systems and in water treatment systems for feeding heating systems.
The scope of delivery includes: multi-way control valve (with residual hardness regulator), flow meter (integrated into the softened water pipeline), sodium cation filter (body made of food-grade plastic reinforced with fiberglass), certified ion exchange resin, brine tank included, central collector with drainage distribution system, hose for flushing water discharge into drainage, AQUATEST total hardness tester.
Advantages:
- Electronic volume control with time priority;
- Built-in residual hardness control system;
- Corrosion-resistant construction materials provide exceptional durability of the unit;
- Fully automated plant operation system;
- Simplicity of programming, ease of maintenance, as well as the absence of complex electronics guarantee many years of operation.
Characteristics
| Parameter name | 0844 | 1044 | 1054 | 1248 | 1354 | 1465 | 1665 |
| Nominal connection diameter, DN | 25 (1˝) | ||||||
| Ion exchange capacity, m 3 x d° | 80 | 120 | 160 | 200 | 250 | 330 | 300 |
| Nominal productivity at softening up to 0.1 d°, m 3 / hour | 0.8 | 1.3 | 1.3 | 1.8 | 2.2 | 2.5 | 3.3 |
| Productivity max., m 3 / hour | 1.1 | 1.5 | 1.5 | 2.2 | 2.6 | 3.0 | 3.9 |
| Salt consumption per regeneration, kg | 4.0 | 5.6 | 7.2 | 8.8 | 12.0 | 16.0 | 20.0 |
| Working pressure, bar | 3 - 7 | ||||||
| Water/environment temperature, o С | 30/40 | ||||||
| Overall height, mm | 1333 | 1333 | 1587 | 1538 | 1587 | 1860 | 1860 |
| Total depth, mm | 490 | 490 | 490 | 550 | 550 | 710 | 710 |
| Overall width, mm | 694 | 744 | 744 | 854 | 880 | 1066 | 1117 |
| Power supply, V/Hz | 24/50 | ||||||
| Degree of protection, IP | 44 | ||||||
