Atmospheric deaerator DA-1
Availability: In stock
₴1.00
Short information
The deaerator is made to order
Rated capacity: 1.0 m³/h
Dimensions (LxWxH): 965 x 1060 x 2274 mm
Nominal case diameter: 700 mm
Weight (dry, without attachments): 570 kg
SKU:
DA1
Details
Details
Atmospheric deaerator DA-1
Atmospheric deaerators of the DA series are designed to remove corrosive gases (oxygen and free carbon dioxide) from water, to feed steam boilers and make-up water for a heat supply system.

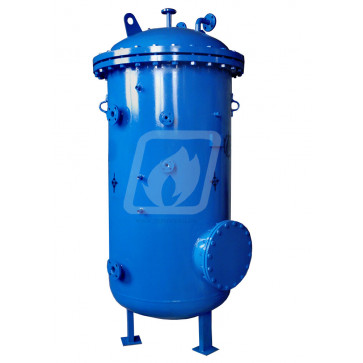

Atmospheric deaerator DA-1 is a vertical, cylindrical vessel with elliptical bottoms and nozzles for inlet and outlet of the working medium, in which deaerating elements and the necessary supply of water are placed. The atmospheric deaerator has three supports. The deaerator is provided with branch pipes for connecting shut-off and control valves, a safety valve, a level indicator, a level gauge column, as well as a branch pipe for condensate return.
For periodic inspection of the internal surfaces of the atmospheric deaerator bubbling device, the connection of the upper elliptical bottom with the body is made on a collapsible flange connection. To inspect the lower part of the deaerator, a manhole with a conditional diameter of 400 mm is provided.
The advantage of atmospheric deaerators DA-1 and DA-3 is a vertical design, which allows you to occupy a minimum area in the boiler room. The operating mode of the atmospheric deaerator is fully automated. The automatic control unit, together with control valves and sensors, stably maintains the specified water level in the tank, the steam pressure in the steam volume, and the temperature of the deaerated water.
Characteristics:
| Index |
| 1.0 m³/h | |
| 0.45 m³ | |
Operating pressure | 0.2 bar |
| Test pressure | 3.0 bar |
Deaerated water temperature | 104.2 °С |
| Maximum allowable absolute pressure | 1.7 bar |
| 2.0 kg/t | |
- maximum |
|
| Deaerator performance range | 30 - 120% |
The content of dissolved oxygen in the deaerated source water, not more than | 20 mg/kg |
| The content of free carbon dioxide in the deaerated source water, not more than | 10 mg/kg |
| Bicarbonate alkalinity, not less than | 0.4 meq/kg |
| The content of dissolved oxygen in deaerated water, no more than | traces |
| The content of free carbon dioxide in deaerated water, no more | missing |
| Overall dimensions (L x W x H), no more | 965 x 1060 x 2274 cm |
| Nominal body diameter | 700 mm |
| Deaerator weight (dry) and without attachments | 570 kg |
The delivery set of atmospheric deaerators may additionally include:
- control unit in various versions (microprocessor automation, a board with a freely programmable controller and a touch control panel , a control board with PID controllers );
- electric control valves for steam supply Belimo (Switzerland);
- electric control valves for water supply Belimo (Switzerland);
- steam pressure regulator of direct action Ari-Predu (Germany);
- level gauge with capacitive sensor Dinel (Czech Republic);
- sensors, instrumentation
To select an atmospheric deaerator, please fill out the questionnaire
