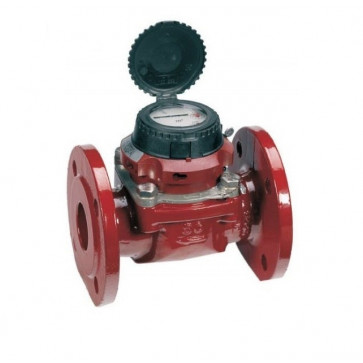

Turbine hot water meter Sensus WPD FS DN50

Turbine hot water meter Sensus WPD FS DN50

Hot water meters turbine flanged WPD FS are used to measure the volume of hot water with a maximum temperature of up to 150 ° C and a working pressure of up to 16 bar, as well as heat and cold metering systems.

Characteristics:

• Meter type: turbine
• Nominal diameters: DN 40... 150
• Nominal water flow range: 15.0 – 150.0 m³/h
• Maximum working environment temperature: + 130 °C
• Nominal pressure: 16 bar
• Connection: flanged
• Mounting position: horizontal, vertical

The main advantages of the counter:

• accuracy class 3 according to the Technical Regulations;
• water temperature (heat carrier) from 10 °C to 130 °C (up to 150 °C for 1 hour a day);
• three pulse outputs as standard (two reed switches - for the Reed RD 022 transmitter, one optical - for the OPTO OD transmitter);
• the ability to install a PulseRF radio module for the SensusRF radio data acquisition system;
• degree of protection IP 68 allows you to work in a flooded state, that is, to operate the device both indoors and outdoors;
• protection against an external magnetic field;
• for the convenience of reading the readings, the counting mechanism can rotate around the vertical axis by 350 °.
