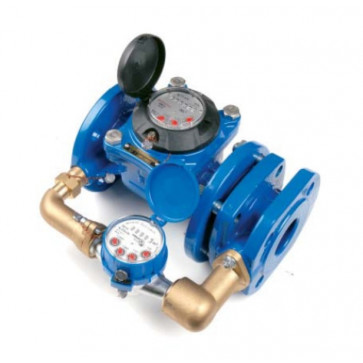

Coupled cold water meter Powogaz MWN/JS 150/16-S DN150

Coupled cold water meter Powogaz MWN/JS 150/16-S DN150

The Powogaz MWN/JS coupled water meter is used in case of uneven water consumption, for example: in hospitals, hotels, schools or houses with different seasonal water consumption, as well as in buildings that have a high degree of fire risk, which can lead to a sharp increase in water consumption.

Characteristics:

• Nominal diameters: DN 50... 150
• Nominal water flow range: 15.0 – 150.0 m³/h
• Maximum working environment temperature: 50 °C
• Nominal pressure: 16 bar
• Connection: flanged
• Mounting position: horizontal (dial up).

The composition of the counter:

• main counter - MWN model;
• additional counter - JS model;
• changeover spring valve.

Benefits of using:

• the valve installed on the meter automatically controls the water flow, redirecting it to the desired meter depending on the current flow rate;
• summation of counter volumes due to the valve;
• wide measurement range - from the minimum flow rate of the additional meter to the maximum flow rate of the main meter;
• NK version with Reed transmitters built into the counting mechanisms of the meters, allowing data to be transmitted to smart home dispatching systems or digital meters.

Special abilities:

• the meter is designed to work in horizontal systems;
• mounting sections fully correspond to the mounting sections of MWN type turbine meters;
• in the standard configuration, an additional counter is to the right of the main one, relative to the flow direction;
• the counting mechanisms of both counters are separated from the measuring chamber and are located in a special sealed case.
