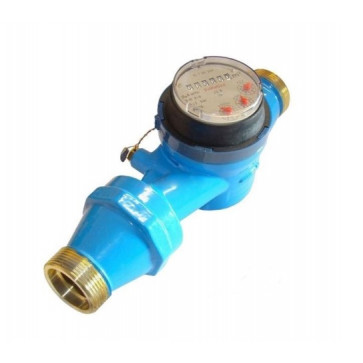

Powogaz JS-10 MASTER+ DN32 cold water meter

Cold water meter single-jet dry type Powogaz JS-10 MASTER + DN32 (nar-nar)

Water meters PoWoGaz JS (for cold water) and PoWoGaz JS130 (for hot water) are designed to measure the volume of drinking water or industrial (technical) water.
Mounting position: for cold water meters horizontal (metrological class B) or vertical (metrological class A), for hot water meters horizontal (metrological class A).

Characteristics:

• Nominal diameters: DN 25... 40
• Nominal water flow range: 3.5 – 10.0 m3/h
• Metrological class: A or B according to DSTU 3580-97
• Nominal pressure: 16 bar
• Connection: threaded
• Mounting position: horizontal, vertical
• Pulse transmitter cable length: 2 m

The main advantages of the counter:

• Small head loss;
• The case of counters is made of brass;
• Counters with a pulse output are made with an antimagnetic screen;
• The counting mechanism is separated from the measuring chamber;
• High reliability and maintainability.

Meter Models:

• JS - cold water meters.
• JS 130 is a hot water meter with a maximum temperature of 130 °C.
• JS-NK - cold water meters with pulse output.
• JS130-NK is a hot water meter with a pulse output with a maximum temperature of 130 °C.
