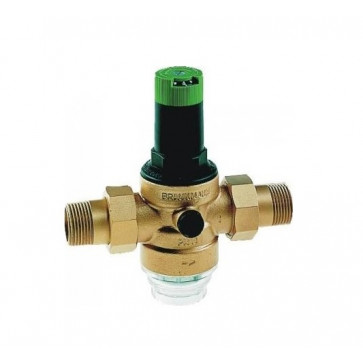

HONEYWELL D06F-1/2A Balanced Seat Water Pressure Regulator

HONEYWELL D06F-1/2A Balanced Seat Water Pressure Regulator

Honeywell D06F water pressure regulators protect drinking and domestic water installations from excessive water pressure in the network. Installing a Honeywell D06F pressure regulator prevents overpressure failure of plumbing fixtures and reduces water consumption. In this case, a constant set outlet pressure is maintained even with significant fluctuations in the inlet pressure. Reducing the operating pressure and maintaining it at a constant level minimizes the noise of the water flow in the installation.

Honeywell D06F Water Pressure Regulator Features:

• DIN/DVGW certification
• Outlet pressure adjustable from 1.5 to 6.0 bar (factory setting 3.0 bar)
• The set pressure is displayed on the setting scale
• The setting spring does not come into contact with water
• Valve insert made of high quality synthetic material can be changed
• Built-in filter
• Versions without connection fittings available
• Easily upgradeable to combined fine filter
• Pressure balanced valve seat - inlet pressure fluctuations do not affect outlet pressure
• Light weight
• Reliable and proven design

Design:

• Housing with G 1/4" gauge port (both sides)
• Threaded connection (versions A and B)
• Valve insert with diaphragm and valve seat
• Fine filter with 0.16 mm mesh
• Spring cup with scale and adjustment knob
• filter flask
• tuning spring
• Pressure gauge not included

Materials:

• Dezincification resistant brass body
• Threaded brass fittings
• Valve insert made of high quality synthetic material
• Stainless Steel Filter Mesh
• Spring cup with adjustment knob and scale made of high-quality synthetic material
• Spring steel tuning spring
• Reinforced NBR diaphragm
• NBR seals
