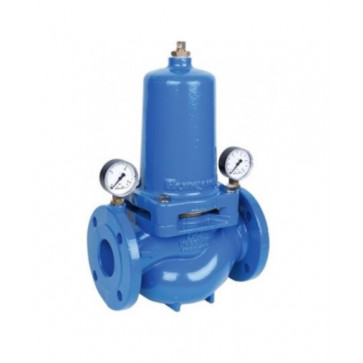

Pressure regulator HONEYWELL D15S-80A

Pressure regulator HONEYWELL D15S-80A

D15S pressure regulators protect equipment from overpressure from the water supply. They can be used in domestic, industrial or commercial installations within their specifications. Installing a pressure regulator prevents equipment failure due to pressure build-up and reduces water consumption. The outlet pressure set remains constant even if the inlet pressure fluctuates considerably. Reducing the operating pressure and maintaining it at a constant level minimizes the noise of the water flow in the installation.

Characteristics:

• environment: drinking water in accordance with current standards (e.g. DIN EN 12502)
• inlet pressure: 1 - 16.0 bar.
• regulation range: 1.5 - 7.5 bar.
• operating temperature: up to 65 °C.

Regulator Features:

• powder coating outside and inside - the applied powder is physiologically and toxicologically safe;
• patented modular solution that facilitates assembly and maintenance;
• a single replacement cartridge for the entire line of standard sizes;
• meets all the requirements of DIN EN 1567 as well as the requirements of part 6 of DIN 50930 regarding the permitted lead content.

Materials:

• housing - ductile iron (EN-GJS-400-15 EN1563);
• spring cover - malleable iron (EN-GJS-400-15 EN1563);
• cartridge insert - brass;
• adjusting spring - spring steel;
• membrane and seals - EPDM;
• lip seal and sealing washer - high-quality polyurethane;
• screws and nuts - stainless steel.
