  • Pressure reducing valve ADCA PRV57 DN25

Pressure reducing valve ADCA PRV57 DN25 Увеличить

Pressure reducing valve ADCA PRV57 DN25

Be the first to review this product

Availability: In stock

₴65,250.00
Short information

Nominal diameter: 25 mm
Mounting length: 160 mm
Weight ≈ 17 kg

SKU: PRV5725
Возможна скидка
To receive a discount, call us
tel. (044) 33-999-40, 41
or write
[email protected]
Working hours: Mon-Fri from 9 a.m. to 5 p.m.
x
  • Add to Wishlist
  • Details
  • Reviews
Details
Details

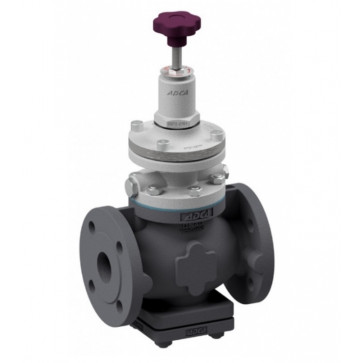

Pilot Operated Pressure Reducing Valve ADCA PRV57 DN25

Pilot pressure reducing valves PRV57 are specially designed for use in pipelines of steam, compressed air, nitrogen and other gases compatible with materials of construction and can be used in pressure reducing units in all industries.

Models:

  • PRV57 - carbon steel.
  • PRV57I - stainless steel steel (optional)

Options:

  • Connection: flanged
  • Diameter: 15 - 100 mm
  • Working environment temperature: -10...+300 ºC
  • Nominal pressure: 40 bar
  • Pressure setting range "downstream":
    • 0.07-0.5 bar (with cover for low pressure);
    • 0.35-2.0 bar;
    • 1.5-5.0 bar;
    • 3.5-8.5 bar;
    • 7.0-17.0 bar.
  • Maximum pressure after the valve: 17.0 bar
  • Maximum pressure in front of the valve: 28.0 bar
  • Mounting position: horizontal

Main advantages:

  • High pressure control accuracy due to the pilot control principle.
  • Easy and precise adjustment with a screw adjuster.
  • Wide pressure adjustment range for each pilot valve spring size.
  • Increased throughput compared to analogues.
  • Adjustable minimum inlet pressure.
  • Possibility of remote control.
