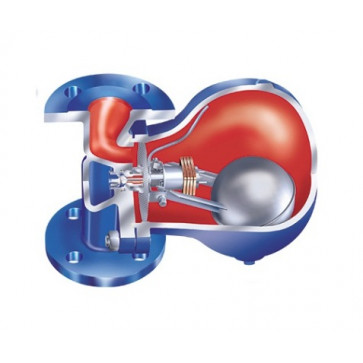

Float trap ARI-CONA SC 42.634 DN25

Working environments: steam, condensate, gases with liquid components.

Options:

• Execution material: body - forged steel, cover - cast iron with nodular graphite
• Connection: flanged
• Diameter: 15 - 25 mm
• Regulator R14
• Maximum operating temperature: +300 ºC
• Maximum working pressure: 16 bar

Design features:

• Controller with built-in bimetal or thermostatic element to ensure air extraction during system start-up.
• Built-in non-return valve (except ARI-CONA-SC Plus).
• Built-in filter (model ARI-CONA-S only).
• Robust design resistant to hydraulic shocks.
• Operable with significant fluctuations in pressure and condensate flow.
• Possibility to replace the controller without dismantling the steam trap.
• Possibility to change the mounting position during operation.
• High flow capacity even at low pressure drops.
