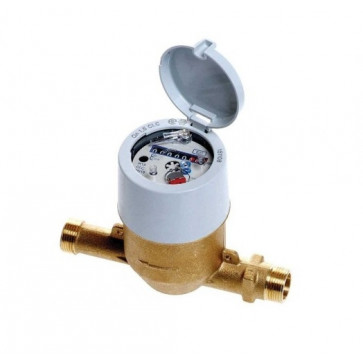

Volumetric cold water meter Sensus 620 DN20

Volumetric cold water meter (dry) Sensus 620 DN20

Volumetric cold water meter Sensus 620 is designed to measure the volume of water with a maximum temperature of up to 50 ° C and a working pressure of up to 16 bar in a horizontal, vertical or inclined position on the pipeline.

Characteristics:

• Nominal diameters: DN 15... 40
• Nominal water flow range: 2.5 – 16.0 m³/h
• Metrological class: C (measurement range R160 according to the Technical Regulations)
• Nominal pressure: 16 bar
• Connection: threaded
• Mounting position: horizontal, vertical, inclined

The main advantages of the counter:

• calibration interval 4 years;
• ultra-low pressure loss;
• ultra-high sensitivity (sensitivity threshold 1 l/h);
• Possibility to install HRI module (with different options for impulse price);
• silent operation;
• the possibility of mounting the meter on any section of the pipeline (horizontal, vertical, inclined).
