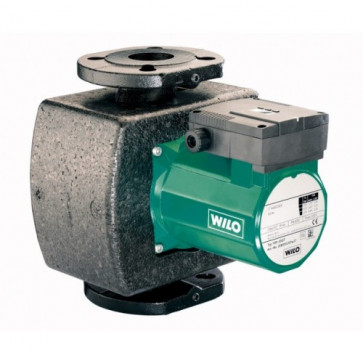

Heating circulation pump Wilo TOP-S 40/4 EM

Heating circulation pump Wilo TOP-S 40/4 EM

Wilo TOP-S circulation pumps circulate water in heating, hot water and floor heating systems. Wilo TOP-S circulation pumps are quite compact and lightweight, installed directly on the pipeline and operate almost silently. Suitable for systems of almost all private houses, not easy to install and have a long service life. The installation of the electronic high-efficiency pump Wilo TOP-S saves up to 90% of energy compared to an unregulated circulation pump. If you use the Wilo TOP-S pump in the hot water supply system, then the energy savings compared to standard circulation pumps will be 80%. Pumps of this line are designed for installation in private houses and cottages.

Equipment and functions of Wilo TOP-S circulation pumps:

• Manual power adjustment with 3 speed settings
• Wilo TOP-S pumps with single-phase motor:

• P ₂ up to 90 W: Integrated winding protection against overheating
• P ₂ = 180 W: Complete motor protection by winding safety contact in combination with tripping device

• Wilo TOP-S pumps with three-phase motor:

• P ₂ up to 90 W: Integrated winding protection against overheating
• P ₂ ≥ 180 W: Complete motor protection with integrated electronic tripping system
• Connection to a 3-phase 230 V mains supply with optional switching plug

• Wilo TOP-S pump housing coated with cataphoretic varnish (KTL) for optimum corrosion protection
• Combination flange PN 6/PN 10 (for DN 40 – DN 65)
• Thermal insulation for use in heating systems
• Additional functions with the upgradeable protection module C

• Fault signaling SSM as potential-free break contact;
• Operating status signaling SBM as potential-free NO contact
• Control input "Off" by priority" with an external potential-free contact (NC contact)
• Blockage detection
• Complete motor protection with built-in shutdown device
• Fault acknowledgment
• Wilo double pump control system (two pumps installed in parallel): Master/standby operating mode (automatic pump changeover on fault/timer)

Features and benefits of Wilo TOP-S circulation pumps:

• Used in heating and cooling/air conditioning systems from -20 °C to +130 °C (TOP-S 80/15 and TOP-S 80/20 from -20 °C to +110 °C)
• Wilo TOP-S pump housing with cataphoretic coating (KTL) for protection against corrosion due to condensation
• Manual power adjustment with 3 speed settings
• Easy installation thanks to PN 6/PN 10 combination flange (for DN 40 - DN 65)

Equipment and material of Wilo TOP-S circulation pumps:

• For Wilo TOP-S pumps with flange connection: Flange versions
• Standard version for Wilo pumps DN 40 - DN 65: combination flange PN 6/10 (flange PN 16 according to EN 1092-2) for counter flanges PN 6 and PN 16,
• Standard version for Wilo TOP-S pumps DN 80/DN 100: flange PN 6 (designed PN 16 according to EN 1092-2) for counter flange PN 6,
• Special version for Wilo TOP-S pumps DN 40 - DN 100: flange PN 16 (according to EN 1092-2) for counter flange PN 16
• Cable entry possible on both sides (only for single-phase and three-phase pumps with P2≥180 W)
• Serial equipment of the pumps used in systems of heating, thermal insulation.
• Pump housing: Gray cast iron
• Impeller: Synthetic material
• Shaft: Stainless steel
• Bearings: metal graphite
