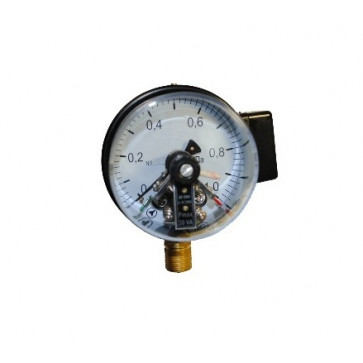

Electrocontact manometer Ø 100 mm (250 kPa - 6 MPa)
Availability: In stock
₴1,356.00
Short information
Case Diameter: 100mm
Pressure gauge accuracy class: 1.5
Fitting thread: M20x1.5
Version: radial
Measured pressure range (specify when ordering) :
1) 0...250 kPa
2) 0...400 kPa
3) 0...600 kPa
4) 0...1.0 MPa
5) 0...1.6 MPa
6) 0...2.5 MPa
7) 0...4.0 MPa
8) 0...6.0 MPa
SKU:
101675
Details
Details
Electrocontact pressure gauge Ø 100 mm (-100 kPa - 160 kPa, 10 MPa - 25 MPa)
It is used to measure the excess pressure of various media and control external electrical circuits from a direct signaling device.
Characteristics:
- Degree of protection: IP40
- Power: no more than 30 W
- Switched current strength: no more than 1 A
- Voltage of external switched lines: 220 V or 380 V - for AC circuits with a frequency of (50 ± 1) Hz and 220 V - for DC circuits
Manometer parts materials :
- The case is steel, painted black.
- Glass - technical.
- Measuring element, mechanism, fitting: copper alloy.
