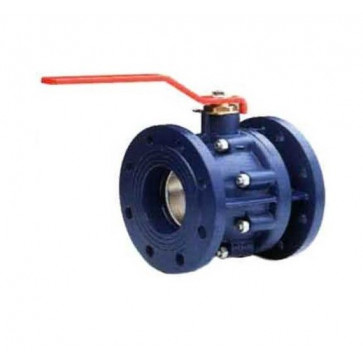

Flanged cast iron ball valve Brandoni DN15-DN200
Short information
Nominal diameter: 15-200 mm
Connection type: flange
Maximum working pressure: 16 bar
Operating temperature range: - 20... + 140°
Price for DN200 available on request
SKU:
B2100015sbor
| Наименование | Краткая информация | Артикул | Price | Qty | Add to Cart |
|---|---|---|---|---|---|
| Flanged cast-iron ball valve Brandoni DN15 |
Nominal diameter: 15 mm |
B2100015 |
₴3,480.00
|
Possible discount
|
|
| Flanged cast-iron ball valve Brandoni DN20 |
Nominal diameter: 20 mm |
B2100020 |
₴3,620.00
|
Possible discount
|
|
| Flanged cast-iron ball valve Brandoni DN25 |
Nominal diameter: 25 mm |
B2100025 |
₴4,010.00
|
Possible discount
|
|
| Flanged cast-iron ball valve Brandoni DN32 |
Nominal diameter: 32 mm |
B2100032 |
₴4,630.00
|
Possible discount
|
|
| Flanged cast-iron ball valve Brandoni DN40 |
Nominal diameter: 40 mm |
B2100040 |
₴5,195.00
|
Possible discount
|
|
| Flanged cast-iron ball valve Brandoni DN50 |
Nominal diameter: 50 mm |
B2100050 |
₴5,685.00
|
Possible discount
|
|
| Flanged cast-iron ball valve Brandoni DN65 |
Nominal diameter: 65 mm |
B2100065 |
₴7,000.00
|
Possible discount
|
|
| Flanged cast-iron ball valve Brandoni DN80 |
Nominal diameter: 80 mm |
B2100080 |
₴9,005.00
|
Possible discount
|
|
| Flanged cast-iron ball valve Brandoni DN100 |
Nominal diameter: 100 mm |
B2100100 |
₴11,795.00
|
Possible discount
|
|
| Flanged cast-iron ball valve Brandoni DN125 |
Nominal diameter: 125 mm |
B2100125 |
₴20,995.00
|
Possible discount
|
|
| Flanged cast-iron ball valve Brandoni DN150 |
Nominal diameter: 150 mm |
B2100150 |
₴28,250.00
|
Possible discount
|
|
| Flanged cast-iron ball valve Brandoni DN200 |
Nominal diameter: 200 mm |
B2100200 |
₴0.00
|
Possible discount
|
Details
Details
Flanged cast iron ball valve Brandoni DN15-DN200
Are intended for application as shutoff valves in the industry and systems of heat and water supply.
Working environments : hot and cold water, compressed air, oil products, other non-corrosive liquids and gases.
CHARACTERISTICS
- Nominal diameters, mm: DN15 - DN250
- Working environment temperature: -20°С …+140°С
- Nominal pressure, bar: PN16 (DN15-DN200), PN10 (DN250)
- Mounting position: arbitrary
- Connection: flanged
- Drives: handle, electric drive, pneumatic drive
MAIN ASSEMBLY MATERIALS
- Body - cast iron GG25 (DN15 - DN32, DN200 - DN250), ductile iron GJS400 (DN40 - DN150)
- Ball - chrome-plated brass
- Spindle - chrome-plated brass
- Ball seat - Teflon PTFE with graphite
- Handle - carbon steel 1.0114
- Spindle seal - Viton®
DESIGN FEATURES
- Heavy duty nodular cast iron body (standard) for DN40 - DN150.
- The fixing bolts of the collapsible body (for DN40 - DN250) are located outside and do not come into contact with the working medium.
- The “non-flying” spindle rotates in a brass bush, which ensures low friction forces.
- The axial backlash of the spindle during operation is selected using a nut that simultaneously fixes the handle.
- Dynamic sealing of the spindle due to the installation of two sealing rings in each groove.
- The ball seats are made of Teflon (PTFE) with graphite for less friction and more elasticity.
- The ball seats are spring-loaded with elastomer inserts that are more resilient than steel springs.
- Smooth running and low torques when opening/closing.
- Valves are standard equipped with flanges for installation of electric and pneumatic actuators according to ISO 5211 (for DN40 - DN250), which makes it easy to install any actuator without dismantling the valve.
