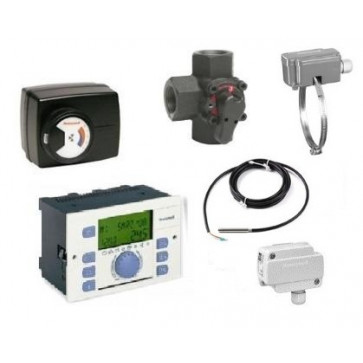

Heating automation kit with Honeywell Smile SDC9-21N controller
Availability: In stock
- Boiler control with two-stage burner or cascade control of two boilers (a second boiler outlet temperature sensor is required)
- Weather-compensated direct and mixing circuit control.
- DHW pump control (various priority modes), DHW circulation pump.
- Management of the solar collector.
- Independent seven-day programs.
Price available upon request
Heating automation kit with Honeywell Smile SDC9-21N controller
Components of the automation system | Quantity | |
SDC9-21N | Smile controller, 2 stages, 1 direct + 1 mixing circuit, DHW | 1 PC. |
TBS-Smile | Panel Mount Terminal Block Set | 1 PC. |
KTF20-65-2M | Boiler sensor, hot water tank, hot water from solar collector | 3 pcs. |
SF20-B54 | Heat carrier temperature sensor | 1 PC. |
AF20-B54 | Outdoor temperature sensor | 1 PC. |
V5433A1049 | 3-way rotary valve, DN 25 (valve size is an example) | 1 PC. |
M6063L1009 | rotary valve actuator | 1 PC. |
1. Honeywell Smile SDC9-21N controller
Smile SDC controllers version 3.2 are designed to control heating and hot water systems with one or more boilers (SDC mode) or district heating system heat exchangers (DHC mode). All controllers are equipped with a large, backlit LCD display that provides easy-to-read system parameters. Convenient intuitive controller interface now supports Russian. The buttons for quick access to setting the main parameters, operating modes, indoor air temperature and hot water temperature in the boiler are placed on the front panel.
Principle of operation:
Heating and DHW circuits are controlled independently, 7-day time programs offer up to 2 comfort and 3 economy periods per day. For each heating circuit, you can set an individual temperature-time program, taking into account weather compensation or taking into account maintaining a constant temperature of the heat carrier in the circuit. This feature will allow the use of two circuits in one heating zone. For example, one circuit is used for underfloor heating with a constant flow temperature, and the other for radiator heating, taking into account weather compensation.
Controller Features:
- Convenient and intuitive operation with the controller is ensured by a spacious 3-line LCD display with backlight, a rotary push button and main quick access buttons placed on the front panel;
- The controller menu supports Russian;
- Different access levels to the settings (User menu, Service Engineer menu) provide protection against unauthorized changes;
- Remote change of operating modes and settings when using SDW10, SDW20 or SDW30 room modules;
- Up to 15 vacation periods (school holidays, weekends, etc.) can be programmed both in advance and after the onset;
- Special energy-saving modes: Permanent economy, Absence, Vacation, Off, help save heating costs;
- Support for the OpenTherm protocol when controlling boilers;
- Frost protection;
- Legionella protection (for DHW systems);
- Protection of valves and pumps from sticking.
2. TBS-Smile Panel Mount Terminal Block Set
TBS-Smile terminal blocks are designed for connecting el. wires to the controller in case you plan to install the controller on the control panel door or on the boiler panel. The TBS-Smile package includes four terminal blocks at once: X1, X2, X3, X4.
3. Cable type temperature sensor KTF20-65-2M
The cable type temperature sensor KTF20 is used in heating systems to measure the temperature of the coolant in the pipe.
Characteristics:
- Protection class: IP65
- Temperature range: -30...+105 °C
- Cable length: 2m
- Diameter x Length: 6.0 x 55 mm
4. Consignment note water temperature sensor SF20-B54
Characteristics:
- Protection class: IP54
- Temperature range: -30...+110 °C
- Number of wires to be connected: 2
5. Outdoor temperature sensor AF20-B54
Characteristics:
- Protection class: IP54
- Temperature range: -40...+70 °C
- Number of wires to be connected: 2
- Size (HxWxD): 81 x 56 x 56 mm
6. Honeywell V5433A 3-way rotary mixing valve (DN 20 to DN 50)
Mixing valves for precise control of the supply water temperature in heating and air conditioning systems.
3-way rotary valves regulate the temperature of the mixed water by turning the shutter. The valve regulates the flow of water at two inlets with two control characteristics. The required temperature of the water flow is achieved by mixing part of the return water into the hot water supplied from the boiler.
Characteristics:
- Operating temperature: +2°C to +110°C
- Rotation Angle: 90°
- Static pressure: 6 bar
- Maximum differential pressure: 1 bar
- Kvs value: 2.5 - 40.0 m³/h
- Suitable drives: M6063
Peculiarities:
- Chrome-plated connections ensure a long service life
- Characteristics optimized for supply water temperature control
- Protected against corrosion
- Reliable electric drive installation
- Wide bandwidth range
- Compact design
7. 3-position electric actuator for rotary valves Honeywell M6063L1009
The M6063 actuator is designed to provide 3-position control in heating and air conditioning systems. This drive is characterized by high control performance and robust design. In combination with rotary valves, it is able to provide very precise control of the water temperature in heating and cooling systems. Mechanical means of engagement of the actuator with the valve ensure their reliable functioning.
Electric actuators for 3-position control are suitable for V5433A, V5433G, V5442A, V5442G series rotary valves.
Characteristics:
- Control signal: 3 position
- Protection class: IP44
- Rotation Angle: 90°
- Stroke duration: 100 sec.
- Rated torque: 7Nm
- Cable length: 1.5 m
Drive features:
- Overload and blocking protection
- Maintenance free
- Position indicator
- Mounting directly on the rotary valve
- Manual control
- Big torque
- Large circuit box
- Long service life
