Cabinet softening unit BWT AQA PERLA SE (BIO)
Short information
Nominal connection diameter: 25 mm Nominal flow: 2.5 - 2.8 m³/h Working pressure: 1.5-6 bar
SKU:
B0044946sbor
| Наименование | Краткая информация | Артикул | Price | Qty | Add to Cart |
|---|---|---|---|---|---|
| Cabinet softener unit BWT AQA PERLA 20 SE | Nominal connection diameter: 25 mm Nominal flow: 2.5 m³/h Dimensions (W x D x H): 385 x 500 x 1110 mm | B0044946 |
₴44,620.00
|
Possible discount
|
|
| Cabinet softener unit BWT AQA PERLA 20 SE BIO | Nominal connection diameter: 25 mm Nominal flow: 2.5 m³/h Dimensions (W x D x H): 385 x 500 x 1110 mm | B0044942 |
₴47,093.50
|
Possible discount
|
|
| Cabinet softener unit BWT AQA PERLA 30 SE | Nominal connection diameter: 25 mm Nominal flow: 2.8 m³/h Dimensions (W x D x H): 405 x 500 x 1110 mm | B0044947 |
₴50,100.50
|
Possible discount
|
|
| Cabinet softener unit BWT AQA PERLA 30 SE BIO | Nominal connection diameter: 25 mm Nominal flow: 2.8 m³/h Dimensions (W x D x H): 405 x 500 x 1110 mm | B0044943 |
₴52,622.50
|
Possible discount
|
Details
Details

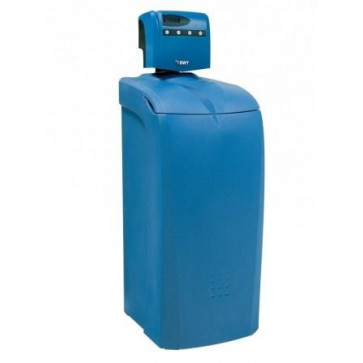

Cabinet softener BWT AQA PERLA SE (BIO)
Description
Single-column compact filter softener BWT AQA PERLA SE is used in domestic and drinking water supply systems and in water treatment systems for feeding heating systems.
Supplied with : sodium cation filter loaded with ion exchange resin and brine tank in one compact body, multi-port control valve with residual hardness controller and water meter, new A5X control panel, digital display, special long life lithium battery, manual override button for extraordinary regeneration, a central collector with a distribution cap, a hose for discharging wash water into the drain, a mains transformer 220/24V.
Advantages:
- Electronic volume control with time priority and additional softener disinfection (electric brine chlorination method) at each regeneration (SE BIO only) ;
- Compact dimensions;
- Information about the operating parameters of the installation is displayed on the LCD;
- Availability of alarm for operating modes;
- Ability to save programmed data in case of power outages;
- Built-in residual hardness control system by mixing non-softened water with softened water;
- Corrosion-resistant materials of execution of installation provide long terms of operation;
- Easy to maintain.
Characteristics
| Parameter name | 20SE (BIO) | 30 SE (BIO) |
| Nominal connection diameter, DN | 25 | |
| Amount of ion exchange resin, l | twenty | thirty |
| Minimum consumption in operating mode, m 3 / hour | 1.2 | 1.6 |
| Nominal consumption when mixed to a hardness of 8 d°, m 3 / hour | 2.5 | 2.8 |
| Average salt consumption per regeneration cycle, kg | 2.5 | 3.75 |
| Working pressure, bar | 1.5 - 6 | |
| Water/environment temperature, o C | 30/40 | |
| Overall height, mm | 1110 | |
| Total depth, mm | 500 | |
| Overall width, mm | 385 | 405 |
| Power consumption in operating mode, W | ten | |
| Power consumption in regeneration mode, W | fifty | |
| Power supply, W/Hz | 220/50 | |
