  • Electric drive Belimo NR230A

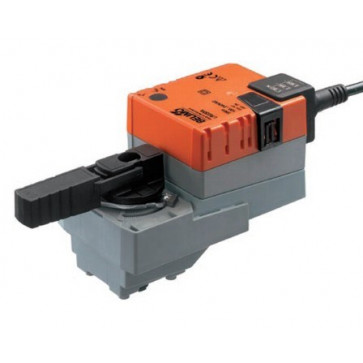

Electric drive Belimo NR230A Увеличить

Electric drive Belimo NR230A

Be the first to review this product

Availability: In stock

₴6,550.00
Short information

Torque: 10 Nm
Supply voltage: 220 V
Full turn time: 90s

SKU: NR230A
Возможна скидка
To receive a discount, call us
tel. (044) 33-999-40, 41
or write
[email protected]
Working hours: Mon-Fri from 9 a.m. to 5 p.m.
x
  • Add to Wishlist
  • Details
  • Reviews
Details
Details

Electric actuator for regulating and positioning ball valves Belimo NR230A

Application

Control of a regulating or position (open/close) ball valve.

Operating principle

A 3-point circuit provides control of a control ball valve. The opening or closing of the ball valve is controlled by a single-wire circuit.

Features of electric drives

  • Easy installation. The actuator is easily attached to the valve with a single screw, horizontally in any of the four positions.
  • High reliability. The drive is overload protected. The stop occurs automatically when the end positions are reached.
  • Manual control. Possibility of mechanical control by means of a lever. When the handle on the body is pressed, the actuator gearbox is disengaged and the valve can be operated manually.
