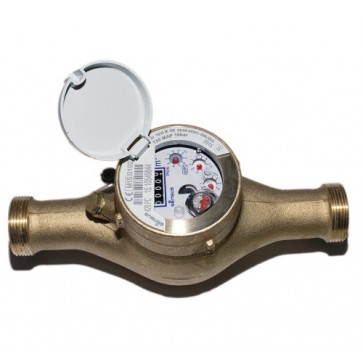

Cold water meter Sensus 420PC DN32

Multi-jet cold water meter with wet mechanism Sensus 420PC DN32

The multi- jet cold water meter 420PC with a wet counter mechanism of capsule design is used to measure the volume of cold drinking or technical water with a maximum temperature of up to 50 ° C and a working pressure of up to 16 bar.

Characteristics:

• Nominal diameters: DN 15... 40
• Nominal water flow range: 2.5 – 16.0 m³/h
• Metrological class: C (measurement range R160 according to the Technical Regulations)
• Nominal pressure: 16 bar
• Connection: threaded
• Mounting position: horizontal, counter upwards

The main advantages of the counter:

• the counting mechanism is filled with a special liquid, thanks to which the glass does not fog up and the main indicator of the counting mechanism always remains clean, which ensures reliable reading;
• high resistance to impurities contained in water;
• ultra-low pressure loss;
• possibility of installing HRI module (with various pulse price options, pulse price from 1 liter / pulse);
• the ability to install a PulseRF + HRI radio module for the SensusRF radio data acquisition system;
• there is no magnetic coupling in the design, which completely eliminates the possibility of external influence by a magnetic field;
• silent operation;
• The degree of protection IP 68 allows you to work in a flooded state, that is, to operate the device both indoors and outdoors.
