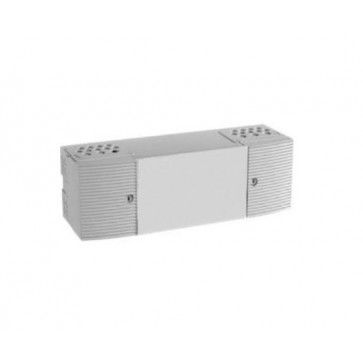

Terminal box for Honeywell SWS-12 controller
Availability: In stock
₴6,236.90
Short information
Protection class: IP30 Ambient temperature: 0...+50 °C Relay contact load: 2 A Wire connection method: spring-loaded terminals Size (L x H x D): 280 x 95 x 88 mm
SKU:
SWS-12
Details
Details
Terminal box for Honeywell SWS-12 controller
The terminal box has spring-loaded terminals, which greatly simplifies and speeds up the connection of wires. Sensor connections are made on the left side of the terminal box, and all devices with a voltage of 230V are connected on the right side of it.
To connect the 2nd wire (common - GND) of all sensors, a separate block is allocated. Separate sockets are also allocated for neutral and ground connections of all 230 V devices (valve actuators, pumps).
One SWS-12 terminal box model fits all Smile SDC controller models. Reviews
