Pressure switch Fantini Cosmi B12 DN (5-16 bar)
Availability: In stock
₴3,995.00
Short information
Measuring range: 5 - 16 bar
Differential: 1 - 3,5 bar
Operating temperature: up to +120 °C
Connection: G 1/4"
SKU:
B12DN
Details
Details

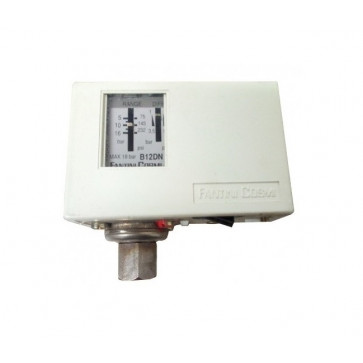

Pressure switch Fantini Cosmi B12 DN (5-16 bar)
Fantini B12DN pressure switch for control and regulation of all fluids and non-explosive gases. Suitable for compression plants, boilers, tanks, autoclaves, ventilation plants, lubrication plants.
This switch can be wire normally open or normally closed.
- Sensitive element with stainless steel membrane, laser welded.
- Metallic frame.
- Cover in shockproof thermoplastic material.
- Output connections with PVC cable gland.
- Fixed differential.
- Female connection G 1/4 (17 mm key).
- Maximum temperature of the controlled fluid: 120 °C.
- Pressure switch body admissible temperature: -35 ÷ 60°C.
- Storage and transport temperature: -35 ÷ 60°C.
