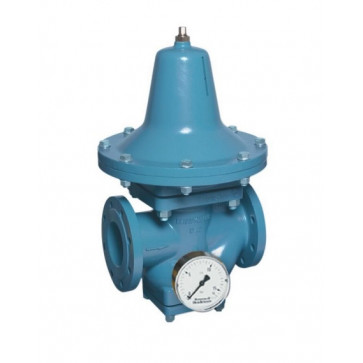

Pressure regulator HONEYWELL D15SN DN50-DN100 (flange), setting 0.5-2.0 bar

Pressure regulator HONEYWELL D15SN DN50-DN100 (flange), setting 0.5-2.0 bar

D15 pressure regulators protect equipment from overpressure from the water supply. They can be used in domestic, industrial or commercial installations within their specifications. Installing a pressure regulator prevents equipment failure due to pressure build-up and reduces water consumption. The outlet pressure set remains constant even if the inlet pressure fluctuates considerably. Reducing the operating pressure and maintaining it at a constant level minimizes the noise of the water flow in the installation.

Characteristics:

• medium: water, nitrogen, compressed air free of oil vapors.
• inlet pressure: 1 - 16.0 bar.
• control range: 0.5 - 2.0 bar.
• operating temperature: up to 70 °C.

Features of regulators:

• Non-protruding outlet pressure setting rod and position indicator on spring cap;
• The adjusting spring does not come into contact with water - service and maintenance can be carried out without dismantling the valve from the pipeline;
• Inlet and outlet pressure gauge (DN80-DN150) or outlet pressure gauge (DN50-DN65) fine adjustment;
• Inlet pressure balancing - fluctuations in inlet pressure do not affect the outlet pressure;
• Polymer powder coating of the valve outside and inside - the polymer is toxic and physiologically safe;
• Reliable and proven design.

Materials:

• Body made of cast iron.
• Cast iron spring cover.
• Bronze valve seat.
• Bronze rod guide.
• The piston is brass.
• EPDM diaphragm.
• Sealing collar made of NBR.
• NBR seals.
• Adjusting spring made of spring steel.
• Stainless steel bolts.
