  • Ball valve for welding GENEBRE 2026 DN100

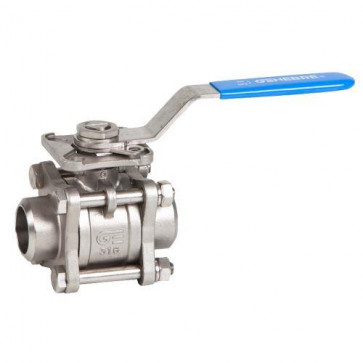

Ball valve for welding GENEBRE 2026 DN100 Увеличить

Ball valve for welding GENEBRE 2026 DN100

Be the first to review this product

Availability: In stock

₴27,000.00
Short information

Nominal diameter: 100
Mounting length: 229 mm

SKU: 202612
Возможна скидка
To receive a discount, call us
tel. (044) 33-999-40, 41
or write
[email protected]
Working hours: Mon-Fri from 9 a.m. to 5 p.m.
x
  • Add to Wishlist
  • Details
  • Reviews
Details
Details

Ball valve N / F for welding GENEBRE DN100

Characteristic

1. Three-piece full bore ball valve made of stainless steel.
2. Butt Weld connections according to ANSI B 16.25.
3. Made of stainless steel AISI 316(CF8M)
4. Ball seat seal PTFE+15%GF
5. Stem ring - Viton
6. Stem seal - PTFE+15%GF
7. Blocking system.
8. Possibility of direct mounting of ISO 5211 actuator (system patented N9900474)
9. Protected against leakage through the stem bore.
10. Max working pressure 63 Kg/cm2.
11. Operating temperature -25°C + 180°C
