Thermostatic steam trap ARI-CONA M 45.612 DN15-DN25
Short information
Nominal diameter: 15 - 25 mm Mounting length: 150 - 160 mm Weight: 2.7 - 3.7 kg
SKU:
45.612sbor
| Наименование | Краткая информация | Артикул | Price | Qty | Add to Cart |
|---|---|---|---|---|---|
| Thermostatic steam trap ARI-CONA M 45.612 DN15 |
Nominal diameter: 15 mm |
45.612-1-15 |
₴15,815.50
|
Possible discount
|
|
| Thermostatic steam trap ARI-CONA M 45.612 DN20 |
Nominal diameter: 20 mm |
45.612-1-20 |
₴15,815.50
|
Possible discount
|
|
| Thermostatic steam trap ARI-CONA M 45.612 DN25 |
Nominal diameter: 25 mm |
45.612-1-25 |
₴15,815.50
|
Possible discount
|
Details
Details

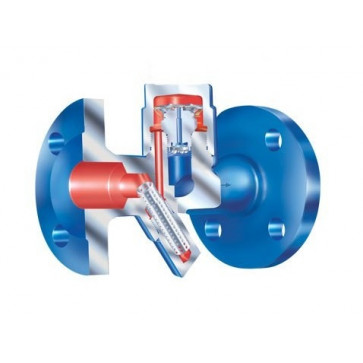

Thermostatic steam trap ARI-CONA M 45.612 DN15-DN25
Main applications: digesters, steam radiators, shell-and-tube heaters and pasteurizers, dryers, ironing presses, autoclaves, etc.
Working environments: steam, condensate, gases with liquid components.
Options:
- Body material: forged steel
- Connection: flanged
- Diameter: 15 - 25 mm
- Regulator R22
- Maximum operating temperature: +450 ºC
- Maximum working pressure: 40 bar
Design features:
- High sensitivity due to special fluid filling membrane and chamber.
- Effective protection against dirt thanks to the mesh filter.
- Built-in check valve.
- Automatic venting during start-up and operation.
- The strengthened design is not sensitive to water hammers.
- Optimized design for fast installation.
- Gasketless cover and body seal (PN40, DN15-25).
- Mounting in any position (except for housing cover downwards).
- Various types of capsules that provide condensate removal at different degrees of condensate aftercooling (0-40°C).
