Double window sight glasses ARI 12.660 DN15 - DN200
Short information
Nominal diameter: 15 - 200 mm
Mounting length: 130 - 600 mm
Weight: 3.6 - 47 kg
Connection type: flanged
Nominal pressure: 16 bar
Maximum operating temperature: + 280°С
Prices for DN65-DN200 available on request
SKU:
12.660sbor
| Наименование | Краткая информация | Артикул | Price | Qty | Add to Cart |
|---|---|---|---|---|---|
| Double window sight glasses ARI 12.660 DN15 |
Nominal diameter: 15 mm |
12.660-15 |
₴11,460.00
|
Possible discount
|
|
| Double window sight glasses ARI 12.660 DN20 |
Nominal diameter: 20 mm |
12.660-20 |
₴12,100.00
|
Possible discount
|
|
| Double window sight glasses ARI 12.660 DN25 |
Nominal diameter: 25 mm |
12.660-25 |
₴15,295.00
|
Possible discount
|
|
| Double window sight glasses ARI 12.660 DN32 |
Nominal diameter: 32 mm |
12.660-32 |
₴18,830.00
|
Possible discount
|
|
| Double window sight glasses ARI 12.660 DN40 |
Nominal diameter: 40 mm |
12.660-40 |
₴21,215.00
|
Possible discount
|
|
| Double window sight glasses ARI 12.660 DN50 |
Nominal diameter: 50 mm |
12.660-50 |
₴23,900.00
|
Possible discount
|
Details
Details

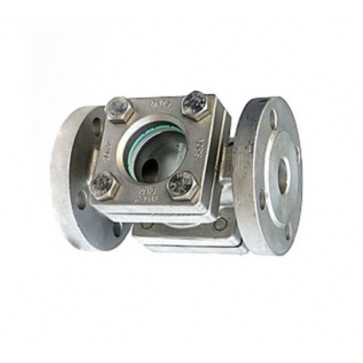

Double window sight glasses ARI 12.660 DN15 - DN200
Application area:
Double window sight glasses are designed for installation on condensate pipelines after steam traps for timely detection and elimination of steam leaks, which helps to avoid energy losses.
Options:
- Connection: flanged
- Nominal diameter: DN15 - DN50, DN65 - DN200 - on request.
- Maximum medium temperature: +280 ºC
- Nominal pressure: 16 bar
- Installation: horizontal or vertical
Execution material:
- Housing - cast iron EN-JL1040
- Lid - cast iron EN-JL1040
- Gasket - graphite
- Window - borosilicate glass
